McAfee EPO

Standard

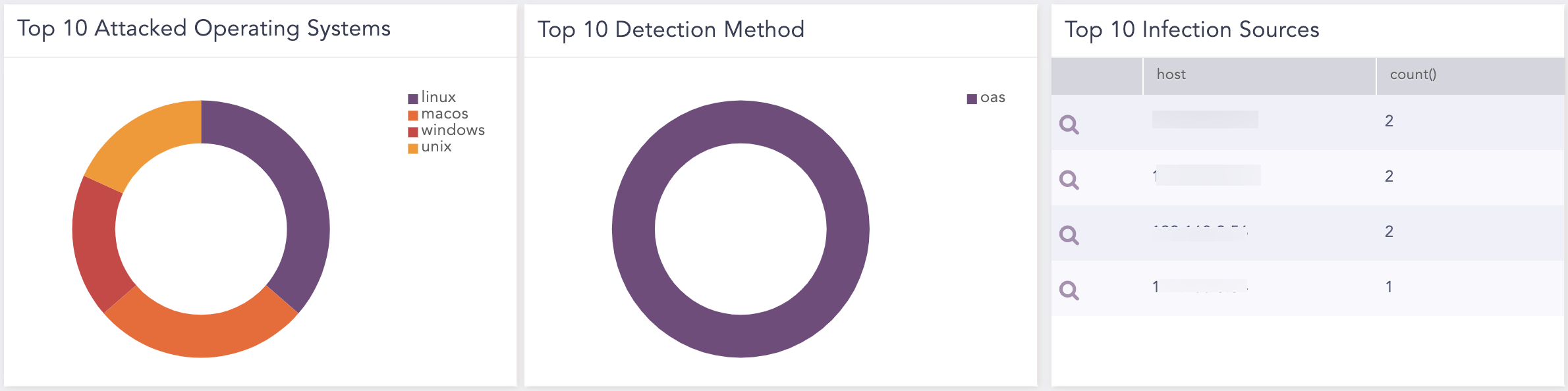

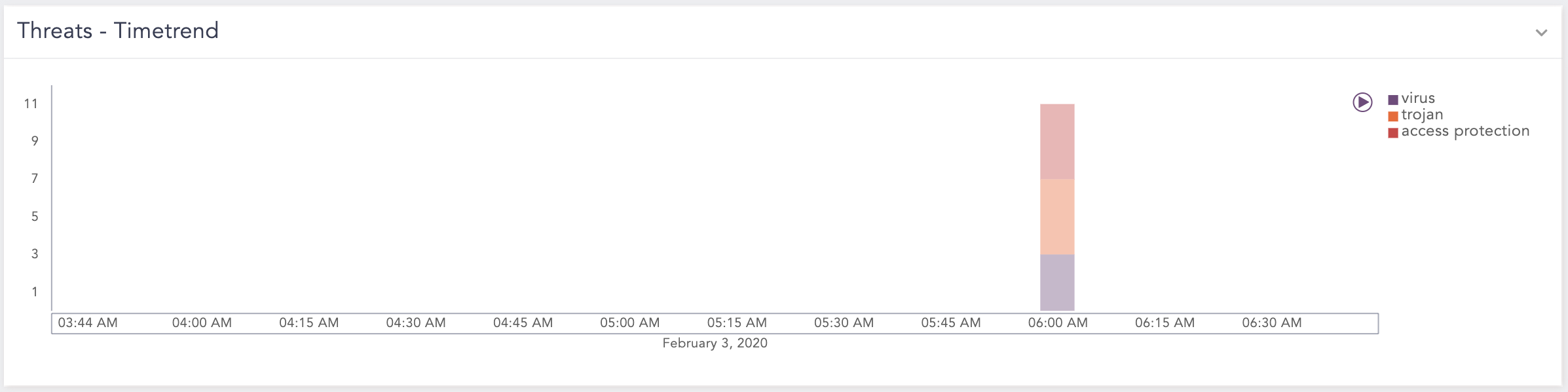

McAfee EPO normalizes McAfee EPO events and enables you to analyze the attack summary, threats, firewall activities, and attack severities using dashboards.

Release Details

Version: 5.2.0

Release date: May 07, 2024

Supported On: Logpoint v7.4.0 or later for log source template

SHA 256: 03cb85c4cd9823c5171e126e2f07caf83ee141b33ec5e2190ca4d93348b59ed4

Download

Enhancement

KB-22688

Added Syslog Collector based Trellix McAfee log source template, simplifying the log source configuration process. To learn more, go to Creating Log Source via a Template .

Installation

To install McAfee EPO v 5.1.0 :

Download the McAfee EPO package from the Download section in the Release Details table.
Add McAfee EPO as a required device in LogPoint.
Create a collection policy with the Syslog collector and an appropriate processing policy.
Assign the policy to the device.
Add the dashboard.
Download the Trend Micro DB package from the Download section in the Release Details table..
Add McAfee EPO as a required device in LogPoint.
Configure ODBC fetcher. To learn more, go to the Configuring the ODBC Fetcher for McAfee EPO in the McAfee EPO v5.1.0 guide.
Assign the policy to the device.
Add the dashboard.

Past Releases

6.7.0 or later ▾

Version: 5.1.0

Release date: 2022-04-13

Supported On: LogPoint v6.7.4 and later

SHA 256: a9816fe5ce7b89fe5afcd21197842244ca6668b9cd4f000e2664c86b7f132af5

McAfee EPO v5.1.0.guide

Download

Enhancements

KB-1089146765

Renamed the severity field as severity_level in McAfeeEPOXMLCompiledNormalizer .

Updated LP_McAfee EPO XML to support events from McAfee ePolicy Orchestrator .

KB-1075744911

Added new signatures in the McAfeeEPODBCompiledNormalizer to normalize McAfee EPO Antivirus logs.

Bug Fixes

KB-1568062907

Some McAfeeEPO logs were not normalized by LP_McAfee EPO XML .

KB-1563562489

The analyzer_host , source_host , and destination_host fields were mapped to the host field.

The TargetUserName and UserName field were mapped to the user field.

6.0.0 to 6.6.6 ▾

Version: 3.2.0

Release date: 2020-05-14

Supported On: Logpoint v6.0.0 to v6.6.6

SHA 256: 73171aa61fdd48846b54b584d5a7725853eff4cb62b1a8fc7cc756458c00fe40

Download

Enhancement

A minor update has been done in the application’s normalizer for better signature handling.

Log Formats

Expected Log Format Sample

McAfee EPO (Syslog Collector)

CEF

<9>CEF:0|McAfee EPO|VirusScan Enterprise|8.8|1092|Solidcore<Test Send threat events to Syslog Server> alert|2|alertId=1092 alertName=Test Send threat events to Syslog Server alertType='File' class or access eventType=SolidcoreEvent host=LOGPOINT eventname=Anti-virus Standard Protection:Prevent remote creation of autorun files workflowid= eventTimestamp=06/03/13 08:38:36 UTC eventObject=H:\PROJECTS\ISFDY\BD DEFENSE\SALES\PROPOSALS\COUNTRY\EDGYPT\EGYPT FAC-M\OBSOLETE\RWM - MASS(TM) (D)\AUTORUN.INF eventProgramName= eventProgramUser=SYSTEM

Expected Log Format Sample (1)

McAfee EPO (Syslog Collector)

CEF

<9>CEF:0|McAfee EPO|VirusScan Enterprise|8.8|1092|Solidcore<Test Send threat events to Syslog Server> alert|2|alertId=1092 alertName=Test Send threat events to Syslog Server alertType='File' class or access eventType=SolidcoreEvent host=LOGPOINT eventname=Anti-virus Standard Protection:Prevent remote creation of autorun files workflowid= eventTimestamp=06/03/13 08:38:36 UTC eventObject=H:\PROJECTS\ISFDY\BD DEFENSE\SALES\PROPOSALS\COUNTRY\EDGYPT\EGYPT FAC-M\OBSOLETE\RWM - MASS(TM) (D)\AUTORUN.INF eventProgramName= eventProgramUser=SYSTEM

Expected Log Format Sample (2)

McAfee EPO (ODBC Fetcher)

Semicolon-separated

"36172608";"2014-10-21 06:55:39.963000";"none";"none";"1119";"ops.update.end";"4";"2014-10-21 06:00:24";"None";"AutoUpdate";"none";"True";"SYSTEM";"jria";"DCCAT";"DC014134"; "DC014134";

"DC014134.DCCAT.DK" ;"10.11.0.82";"";"001f1639e203";"Windows 8.1";"Service Pack 1";"6.1";"7601";"Rom, normaltid";"None";"10.11.0.68";"None";"None";"None";"None";"1";"VirusScan Enterprise";"8.8";"5600.1067";"5600.1067";"7597.0000";"N/A";"5600.1067";

"2";"8.8.0.975.Wrk";"";

Expected Log Format Sample (3)

McAfee EPO

XML

<29>May 12 01:11:44 XXXXX EPOEvents <?xml version="1.0" encoding="UTF-8"?><SCORData><MachineInfo><MachineName>ABC1234</MachineName><AgentGUID>{64c1dd34-f3bc-11e8-00ee-2XXXXXXXXXXX}</AgentGUID><IPAddress>1.1.1.1</IPAddress><OSName>Windows 8 Workstation</OSName><UserName>SYSTEM</UserName><TimeZoneBias>-120</TimeZoneBias><RawMACAddress>242ffa151533</RawMACAddress></MachineInfo><SCORSoftware ProductName="XYZ" ProductVersion="8.0.0" ProductFamily="Secure"><SCOREvent><EventID>20719</EventID><Severity>1</Severity><GMTTime>2022-05-12T13:11:17</GMTTime><SCORevent_name>WRITE_DENIED</SCORevent_name><SCORevt_id>20</SCORevt_id><SCORevt_type>EVT_CAT_TYPE_MAJOR</SCORevt_type><SCORevt_sink>7</SCORevt_sink><SCORseq_no>401234</SCORseq_no><SCORtime_stamp>1589289077527</SCORtime_stamp><SCORserver_state>0</SCORserver_state><SCORuser_name>NT AUTHORITY\SYSTEM</SCORuser_name><SCORprocess_name>C:\windows\abc\abc.exe</SCORprocess_name><SCORprocess_id>2408</SCORprocess_id><SCORfile_name>C:\Windows\abc\ABC.dll</SCORfile_name><SCORprocess_sha1>3342761485c5aed17bc5dabd34219e4cbf836b9b</SCORprocess_sha1><SCORprocess_md5>edf009f55cd092

8009c5c05780616e3d</SCORprocess_md5><SCORprocess_sha256>9bfa82f4c09461c3452b4edc5fd5de32e37d135ff4db3f6762b

706928ae1ed50</SCORprocess_sha256></SCOREvent></SCORSoftware></SCORData>#015

Support

If you have any questions or require assistance, create a support ticket.

Comments

Faizal Dagia
April 03, 2018 14:27

Please confirm is the instruction in the post is correct:

"Download the Trend Micro DB package from the customer site"

Since EPO uses does it not require MS SQL fetcher?

Comment actions Permalink
Joakim Wahlgren
April 02, 2019 08:55

Please update this page to include a zip as seen here https://servicedesk.logpoint.com/hc/en-us/articles/115003783925

Comment actions Permalink

Article is closed for comments.
