Compare Network Process Plugin

Standard

The Compare Network process plugin compares whether the provided IP addresses are from the same or different network. You can also identify if the IP addresses are public or private, based on the default or customized Classless Inter-Domain Routing (CIDR) values.

Release Details

Version: 3.1.0

Release date: 2020-10-30

Supported On: LogPoint v6.8.0 and later

SHA 256: 6050faaaff34f38c467498456d6eaee5cd5464000151a360547e6b62f324dec8

Download

Bug Fix

The following issue has been resolved:

Installation

Follow these steps to install the Compare Network Process Plugin v3.1.0:

Download the Compare Network Process Plugin package provided in the Download section above.
Install the application by importing the pak file to LogPoint under Settings >> System >> Applications.

Usage Information

Syntax:

| process compare_network(fieldname1,fieldname2)

For example:

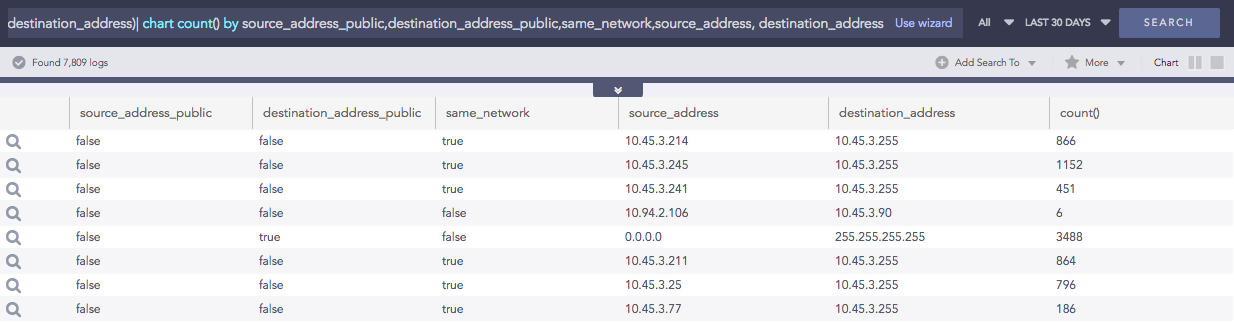

The "| process compare_network(source_address, destination_address) | chart count() by source_address_public, destination_address_public, same_network, source_address, destination_address" query compares the source_address and destination_address field values with public addresses as per the CIDR values. The application returns true if the addresses are public or else it returns false. Similarly, the query also compares whether the fields are from the same network or not.

Support

If you have any questions or require assistance, create a support ticket.
