InRange Process Plugin

Standard

The InRange process plugin determines whether a field-value falls within the range of two given values. The processed query returns TRUE if the value is in the range, or FALSE otherwise.

Release Details

Version: 3.1.0

Release date: 2020-10-30

Supported On: LogPoint v6.8.0 and later

SHA 256: 02508d16a1d32ae04f7f0e5a9dbfd5f7352546043cddc50cf4bb2b5485a28a80

Download

Bug Fix

The following issue has been resolved:

Installation

Follow these steps to install the InRange Process Plugin v3.1.0:

Download the InRange Plugin package provided in the Download section above.
Install the application by importing the pak file to LogPoint under Settings >> System >> Applications.

Usage Information

Syntax:

| process in_range(endpoint1, endpoint2, field, result, inclusion)

where,

endpoint1 and endpoint2 are the endpoint fields for the range,
field is the field name to check whether its value falls within a given range,
result is the user-provided field to assign the result: TRUE or FALSE,
inclusion is the parameter to specify whether the range is inclusive or exclusive of given endpoint values. If this parameter is TRUE, the endpoints will be included for the query, and if it is FALSE, the endpoints will be excluded.

For Example:

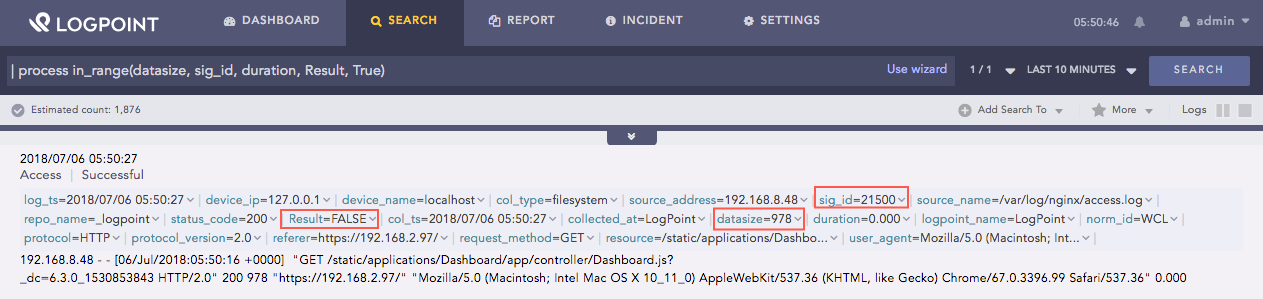

The "| process in_range(datasize, sig_id, duration, Result, True)" query checks if the duration's value lies in the range of sig_id and datasize, inclusive of the endpoints, and assigns the result (TRUE or FALSE) to the Result field.

Support

If you have any questions or require assistance, create a support ticket.
