Ascii Converter

Standard

This is an application package for the Ascii Converter process plugin that enables you to convert hexadecimal (hex) value and decimal (dec) value of various keys to their corresponding readable ASCII values. The application supports the Extended ASCII Table for processing decimal values.

Release Details

Version: 3.0.0

Release date: 2018-07-30

Supported On: LogPoint v6.3.0 and later

SHA 256: 8ce7e1ca1be9fbcb13424e1d2dc991aa018976876bfef69e82dc0a72d5bbfd6f

Download

Installation

Follow these steps to install the AsciiConverter Plugin v3.0.0 in LogPoint:

Download the AsciiConverter package provided above in the Download section.
Install the package by importing the pak file to LogPoint under Settings >> System >> Applications.

Past Release

For LogPoint v6.0 to v6.2 ▾

Version: 3.0.0

Release date: 2018-05-24

Supported On: LogPoint v6.0.0 and later

SHA 256: 8ce7e1ca1be9fbcb13424e1d2dc991aa018976876bfef69e82dc0a72d5bbfd6f

Download

Important Notice

The AsciiConverter plugin includes the functionality of the Hex2Ascii plugin. Therefore, it is recommended to use the AsciiConverter plugin, and uninstall the existing Hex2Ascii plugin, as the later will eventually phase out.

Usage Information

Hexadecimal To ASCII

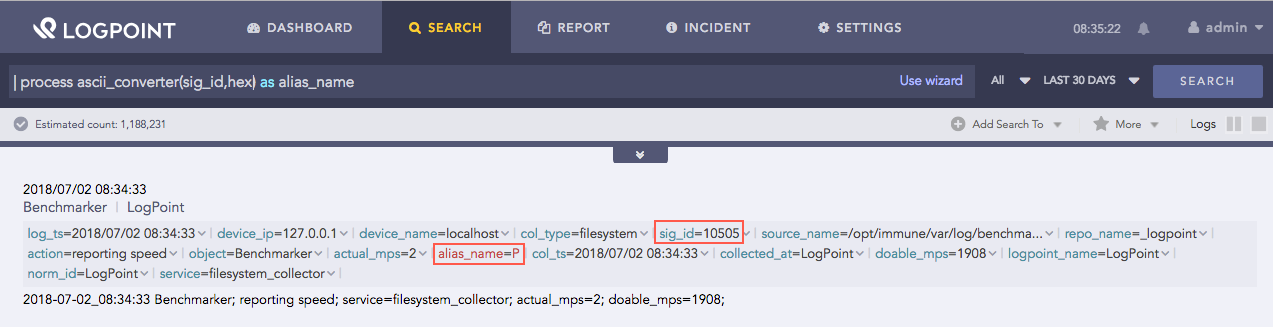

Syntax: | process ascii_converter(fieldname,hex) as string

For example, the "| process ascii_converter(sig_id,hex) as alias_name" query converts the sig_id_hex value to readable ASCII value and assigns it to the alias_name field.

Decimal To ASCII

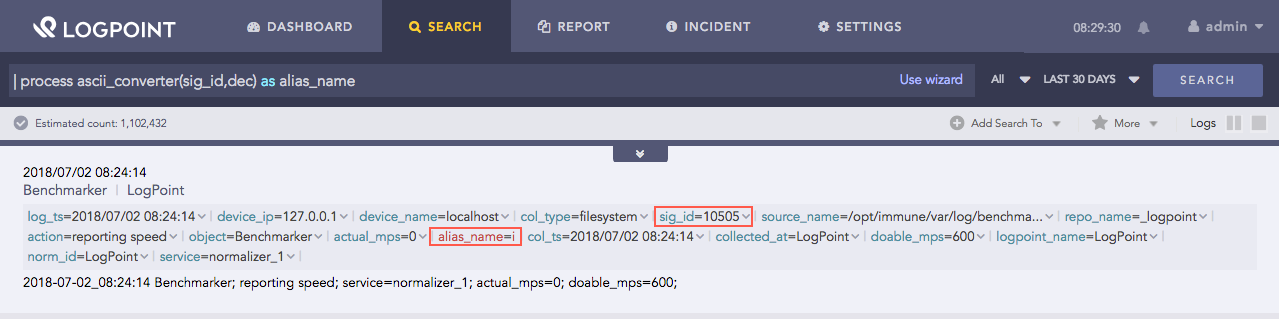

Syntax: | process ascii_converter(fieldname,dec) as string

For example, the "| process ascii_converter(sig_id,dec) as alias_name" query converts the sig_id_dec value to readable ASCII value and assigns it to the alias_name field.

Sample Search
